Brochure

Green Peter hydropower

Generators / total output two 98 mw

Green Peter project data

Dam length 1,500 ft 457.2 m
Height 327 ft 141.1 m
Elevation (NGVD*) 941 ft 99.7 m
Lake length 10 mi 16.1 km
Area when full 3,720 ac 1,505.4 ha
*National Geodetic Vertical Datum

Contact Us

General: 541-684-4300
Recreation: 541-942-5631
Email: cenwp-pa@usace.army.mil

Green Peter Dam & Reservoir

Green Peter and Foster dams work together for the purposes of flood risk management, hydropower, water quality improvement, irrigation, fish and wildlife habitat and recreation.

Green Peter recreation

Project Description

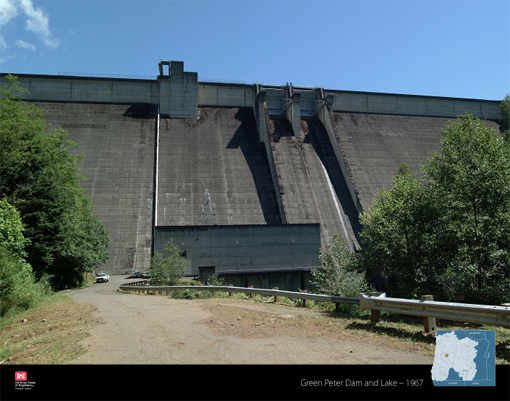

Green Peter Dam is located on the South Santiam River seven miles upstream of Foster Dam and ten miles upstream of Sweet Home, Ore. Green Peter Dam is a 378-foot tall, 1,500-foot long concrete gravity dam with a concrete spillway, two spillway gates, two regulating outlets, and a powerhouse. Green Peter Dam is owned, operated, and maintained by the Portland District of the U.S. Army Corps of Engineers (USACE). Construction of the dam began in 1963 and was completed in 1966. Green Peter Dam is part of a system of 13 multi-purpose dams in the Willamette Valley with the primary purpose of flood risk management and secondary purposes of hydropower, recreation, irrigation, municipal and industrial water supply, fish and wildlife,  and water quality. Collectively, this system of dams is referred to as the Willamette Valley Project.

During the winter months, the Willamette Valley Project reservoirs are maintained at their lowest elevations to allow for the temporary storage of rain and snow melt. When managing high flow events, the outflow from the system of dams is coordinated to reduce peak flows and river stages at downstream locations. In spring, USACE begins to fill the reservoirs, increasing the amount stored for conservation purposes and reducing the amount available for flood risk management.  During summer, stored water is used for recreation on the reservoirs, and some stored water is released in the river downstream to improve water quality, produce hydropower, support fish and wildlife habitat, and provide water for irrigation and municipal uses. During dry summer months, flows into the reservoirs are generally less than flows needed to meet minimum flow objectives, causing reservoir levels to drop. In fall, stored water remaining in the reservoir is drawn down to minimum levels in preparation for the flood season.

Green Peter Dam is located about 80 miles east of the Cascadia Subduction Zone, a megathrust fault along the Oregon Coast. The Cascadia Subduction Zone can produce very large, long duration earthquakes. The last Cascadia Subduction Zone earthquake occurred in the year 1700.

Risk Characterization: Low
USACE has been conducting advanced risk assessments, called Issue Evaluation Studies (IES), at several Willamette Valley Project dams including Green Peter Dam which was completed in 2020. As of result of the advanced study for Green Peter Dam, USACE identified the risk associated with the dam to be low.

USACE performs risk assessments as part of an ongoing dam safety program and to assist in the prioritization of investment for aging infrastructure.  The risk assessments evaluate the life safety risks associated with the dams to determine if risk reduction actions are needed and, if so, what actions should be taken. The assessment considers a wide range of hazard scenarios from the most likely to the most extreme and unlikely. The assessment considered five scenarios that could be damaging to the structure driven by an earthquake and two damaging scenarios driven by extreme flood events.  For all the scenarios considered, the associated risks were found to be low and not to require any short-term measures or long-term modification.

USACE is confident that the Willamette Valley dams are well-built, well-maintained, and will continue to significantly reduce flood risks for the region. However, the dams cannot eliminate potential for flooding. Even with the presence of the Willamette Valley dams, extreme rainfall and snowmelt events may result in flooding in areas downstream of dams.  Flooding can be caused by high flows resulting from unregulated portions of the watershed and/or high flow that must be passed through the dam outlets and spillways when reservoir storage capacities are exceeded. Floods could occur in the future that may cause some inundation and flooding below Green Peter and Foster Dams in communities along the South Santiam River including areas of Sweet Home and Lebanon.

Risk Management Measures
USACE continues to evaluate the condition and risks associated with its dams and will continue to review the risk associated with Green Peter Dam in future routine studies. USACE regularly conducts routine inspections of its dams and Green Peter Dam is equipped with instrumentation to monitor dam performance and seismic activity. Post-earthquake procedures are in place to inspect and evaluate earthquake damages and USACE conducts routine dam safety exercises with local Emergency Managers and first responders. Green Peter Dam’s Emergency Action Plan (EAP) outlines actions to be taken during an emergency. USACE will update the EAP based on recent risk assessment results and information from updated inundation maps. In addition, USACE will continue and increase its outreach to improve community awareness of flood risks and risks associated with the dam.

View more details about Green Peter Dam at the National Inventory of Dams website.

Recreation
Boat Ramps: Linn County Parks operates two boat ramps at Green Peter Reservoir: Thistle Creek Boat Ramp and Whitcomb Creek ParkFor more information call the Linn County Parks Department at 541-967-3917 or visit their website.

CampingLinn County Parks operates two campgrounds at Green Peter Reservoir: Whitcomb Creek Park and a group camping area - Mile Post 16, Quartzville Road, near Trout Creek. For more information call the Linn County Parks Department at 541-967-3917 or visit their website. Boat-in campsites on the banks of Green Peter Reservoir are closed except at the Upper Whitcomb Boat-in Camp Area managed by Linn County Parks.  For more information on boat-in camping, visit the Linn County Parks and Recreation website.  Roadside camping has been permanently closed. Other improvements will be implemented as funding becomes available.



Environmental stewardship at Green Peter Dam

Restoring degraded uplands, wetlands and streams on Corps lands is a main focus of the Willamette Valley Environmental Stewardship program. Recent efforts to improve wildlife habitat on Corps’ lands here centered on replacing invasive plants with native trees and shrubs, and restoration of hydrology and topography to support native plant communities and wildlife habitat.

Osprey nest along the shorelines of the lake and are annually monitored. The Corps works with the Oregon Department of Fish and Wildlife to support resident game and nongame fisheries within the waters of the Middle Santiam River basin.

Flood risk management at Green Peter Dam

Conservation season - April to November: None.
Flood season - November to March: Restrict pool to 1002 feet.

For more information, visit our Water page.
